Voltage stabilization for industrial power systems

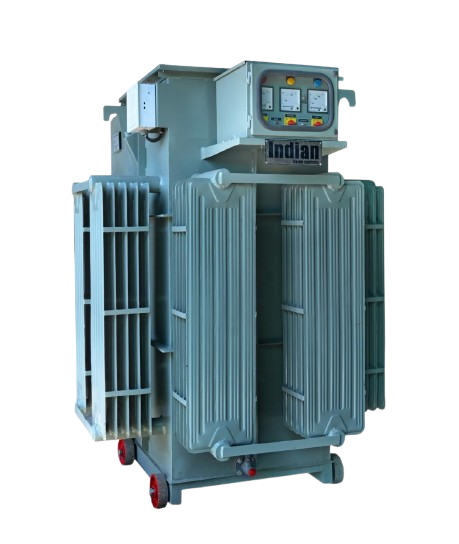

Balanced Servo Voltage Stabilizer
Help maintain stable output when incoming voltage varies, with Type I balanced operation and capacity options from 30 KVA - 7500 KVA.
Price Range₹125000 - 3500000 INR / Unit
- Capacity
- 30 KVA - 7500 KVA
- Phase
- Three Phase
- Balanced Type
- Type I
- Input Voltage Range
- 300V - 480V
- Output Voltage
- 400V / 415V
Product Overview
The Balanced Servo Voltage Stabilizer regulates incoming electrical supply to help maintain a stable output when voltage fluctuates. It is intended for industrial and commercial power environments where voltage stability is important.
The listed capacity range is 30 KVA – 7500 KVA, with Type I balanced operation, a 300V – 480V input voltage range and 400V / 415V output. Match the required capacity and voltage configuration to your site's electrical load before selecting a unit.
Technical Specifications
- Capacity
- 30 KVA - 7500 KVA
- Phase
- Three Phase
- Balanced Type
- Type I
- Input Voltage Range
- 300V - 480V
- Output Voltage
- 400V / 415V
- Speed Correction
- 15V-20V per second
- Technology
- Most Advanced Power Saving Servo Technology (Linear technology)
- Duty Cycle
- 24X7 Continuous
- Application
- Industrial/Households
- Control System
- Automatic/Manual/T Handle
- Meter Type
- Digital/Analog
- Over Volt Protection
- Optional
- Winding
- COPPER
- Material
- Best Raw Material as Per IS Standards for manufacturing of electrical items
- Cooling Type
- Oil cooled
- Mounting
- On Wheels On Floor
- Number Of Wheels
- 4
Key Features
Voltage stabilization
Helps maintain stable output under varying incoming voltage conditions.
Capacity options
Listed capacity range: 30 KVA - 7500 KVA.
Type I balanced operation
The product is listed as a three-phase, Type I balanced stabilizer.
Defined voltage configuration
300V - 480V input voltage range with 400V / 415V output.
Listed correction response
Speed correction: 15V-20V per second.
Industrial electrical use
Intended for installations where a stable electrical supply is important.
Applications
Manufacturing facilities
Where incoming supply variations create a need for voltage stabilization.
Industrial machinery installations
Subject to matching the stabilizer capacity and voltage configuration to the connected load.
Commercial facilities
Where voltage stability is important and the listed electrical configuration suits the installation.
Production environments
For electrical supply arrangements that require voltage regulation.
Fluctuation-affected electrical systems
Where incoming voltage conditions and load requirements call for a suitable stabilizer.
Additional Product Information
Selection should consider the required capacity, incoming voltage conditions, required output voltage and the site’s connected load. Share these details through Get Latest Price so your requirement can be discussed against the listed product configuration.
Include the application, required quantity and any relevant site or load information in Additional Detail. Use Request Call Back if you would prefer to discuss your requirement by phone.
Why Choose Indian Servo Controls
Indian Servo Controls offers a direct enquiry route for its industrial power products. The product specifications and price range provide a starting point for requirement-based selection.
Use Get Latest Price to share your capacity, voltage and application requirements, or Request Call Back to discuss this stabilizer with the enquiry team.
Enquire about Balanced Servo Voltage Stabilizer
Frequently Asked Questions
What is a Balanced Servo Voltage Stabilizer?
It regulates incoming electrical supply to help maintain stable output when voltage varies. This product is listed as a three-phase, Type I balanced stabilizer.
What capacity range is available?
The listed capacity range is 30 KVA - 7500 KVA. Select capacity according to the connected load and site requirements.
What input voltage range is listed?
The listed input voltage range is 300V - 480V.
What output voltages are listed?
The listed output voltage is 400V / 415V. Share the output voltage required for your installation when making an enquiry.
What is the listed speed correction?
The listed speed correction is 15V-20V per second.
Where may this stabilizer be used?
It may be relevant to industrial machinery, manufacturing and commercial electrical installations where voltage stability is important, subject to matching capacity, voltage and load requirements.
How do I select the appropriate capacity?
Consider the connected load, incoming voltage conditions, required output voltage and site requirements. Include these details in your enquiry rather than selecting on price alone.
How can I request pricing or discuss my requirement?
Select Get Latest Price and submit your quantity, unit, additional details and mobile number. The listed price range is ₹125000 - 3500000 INR / Unit. Alternatively, use Request Call Back to leave your mobile number.
